careBT nodes

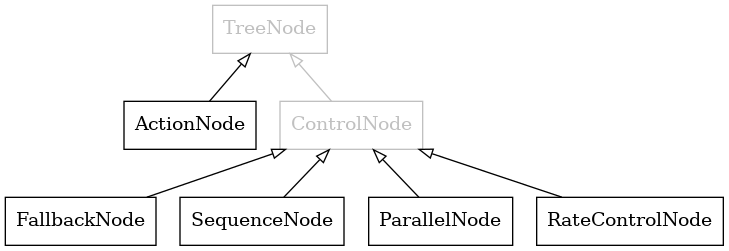

The class diagram below shows the careBT nodes and how they inherit from each other.
![digraph foo {
TreeNode [shape=box, color="grey", fontcolor="grey", label="TreeNode"];
ActionNode [shape=box, label="ActionNode"];
ControlNode [shape=box, color="grey", fontcolor="grey", label="ControlNode"];
FallbackNode [shape=box, label="FallbackNode"];
SequenceNode [shape=box, label="SequenceNode"];
ParallelNode [shape=box, label="ParallelNode"];
RateControlNode [shape=box, label="RateControlNode"];
TreeNode -> ActionNode [arrowtail = onormal, dir = back];
TreeNode -> ControlNode [arrowtail = onormal, dir = back, color="grey"];
ControlNode -> FallbackNode [arrowtail = onormal, dir = back];
ControlNode -> SequenceNode [arrowtail = onormal, dir = back];
ControlNode -> ParallelNode [arrowtail = onormal, dir = back];
ControlNode -> RateControlNode [arrowtail = onormal, dir = back];
}](../_images/graphviz-fca130b6f7d6089e3576d5745842399548259534.png)
The grey nodes are internal nodes only. The black ones are intended to be used to create own custom nodes.
